Compatible with 3x8, 3x7, and 3x6 speed drivetrains, the Shimano TY501 crank delivers reliable, precise Dual SIS shifting.
Compatible with 3x8, 3x7, and 3x6 speed drivetrains, the Shimano TY501 crank delivers reliable, precise Dual SIS shifting.
Shimano

Shimano Tourney TY501 42x34x24-tooth 170mm Chainset in Black

£34.99
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

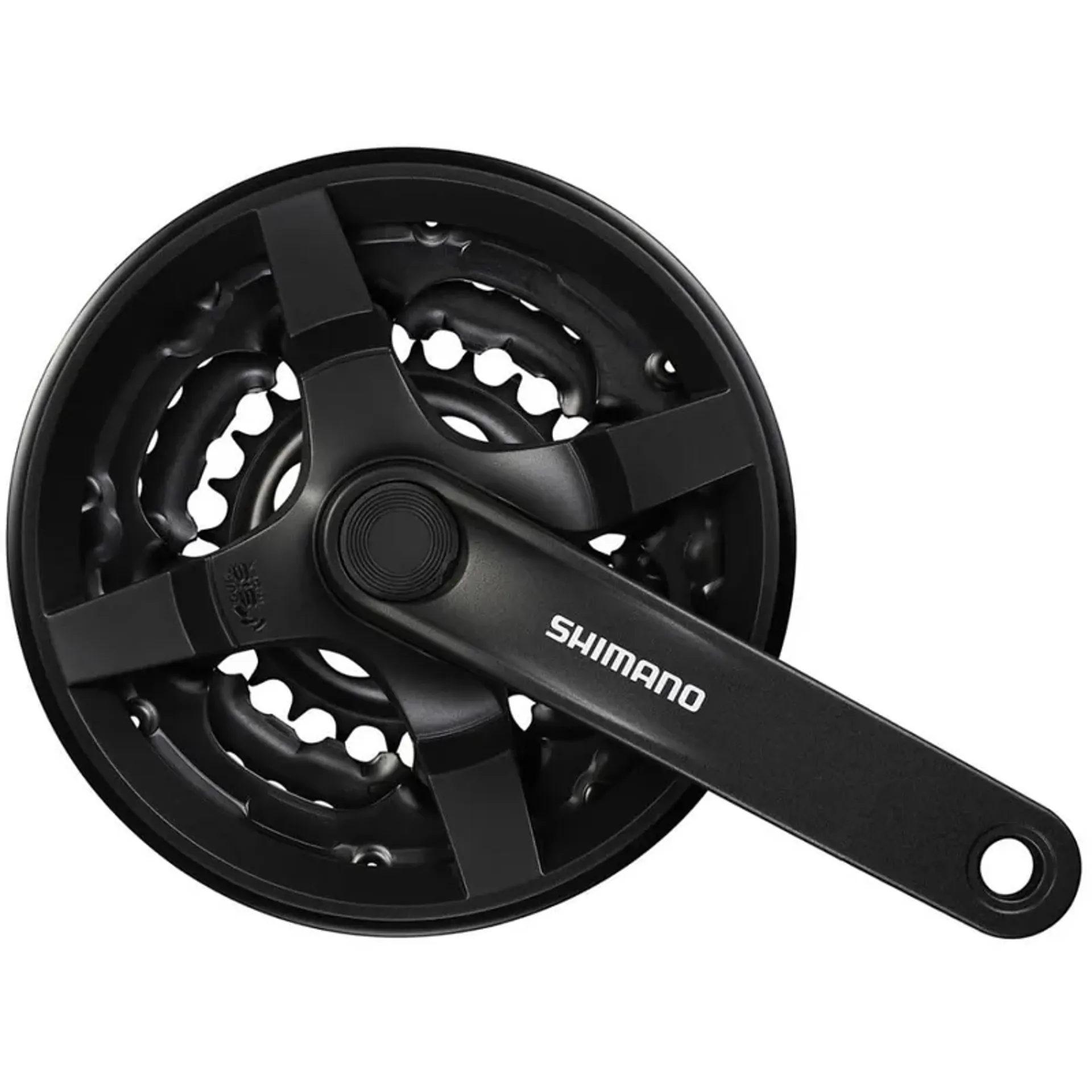

Shimano Tourney TY501 42x34x24-tooth 170mm Chainset in Black

Brand:Shimano

Code:SHCW542

Compatible with 3x8, 3x7, and 3x6 speed drivetrains, the Shimano TY501 crank delivers reliable, precise Dual SIS shifting.

The Shimano TY501 crankset is designed for compatibility with 3x8, 3x7, and 3x6 speed drivetrains, providing reliable and precise Dual SIS shifting performance.

Features:

  • 170mm aluminium crank
  • 42, 34, 24T steel chainrings
  • Integrated chain-guard
  • Chainline 47.5/47.5 + t/50
  • O.L.D 142mm thru axle and 135mm QR
Technical Information
  • Rear speeds
    8/7/6
  • Compatible chain
    HG 8/7/6-speed
  • Chain line
    47.5/47.5 + t/50 mm
  • O.L.D. (QR/Nut)
    141 mm, 135 mm
  • P.C.D.
    Riveted
  • Spider/gear arms
    4
  • Chainring combination
    42-34-24T, 48-38-28T
  • Q-factor
    185.5 mm
  • Crank arm length
    165 mm, 170 mm, 175 mm
  • Optional chain guard
    With bash guard, with chain guard (integrated type), without chain/bash guard
  • Compatible bottom bracket type
    Square
  • Recommended bottom bracket
    Threaded (normal) BB-UN101, BB-UN300; Threaded (chain case) BB-UN101-K, BB-UN300K
  • Axle length of BB-UN/ES
    D-NL, D-EL
  • Threaded bottom bracket shell width
    68 mm, 73 mm
  • Chain case compatible
    Yes
  • Crank arm material
    Aluminium
  • Crank arm finish
    Painted
  • Spider arm cover material
    Resin
  • Outer ring material
    Steel
  • Outer ring finish
    Painted
  • Middle ring material
    Steel
  • Middle ring finish
    Painted
  • Inner ring material
    Steel
  • Inner ring finish
    Painted
  • Crank fixing screw included
    Yes (option)
