Merida's wind tunnel learnings from the REACTO design project have been used to create a smaller aerodynamically optimised ‘NACA Fastback’ tube profile.
Merida's wind tunnel learnings from the REACTO design project have been used to create a smaller aerodynamically optimised ‘NACA Fastback’ tube profile.
Merida

2020 Merida Scultura Disc 8000-E Road Bike in Black

£5,250.00
Size Guide
Earn
in Customer Rewards when you buy this item today
Sign Up
Sign In
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

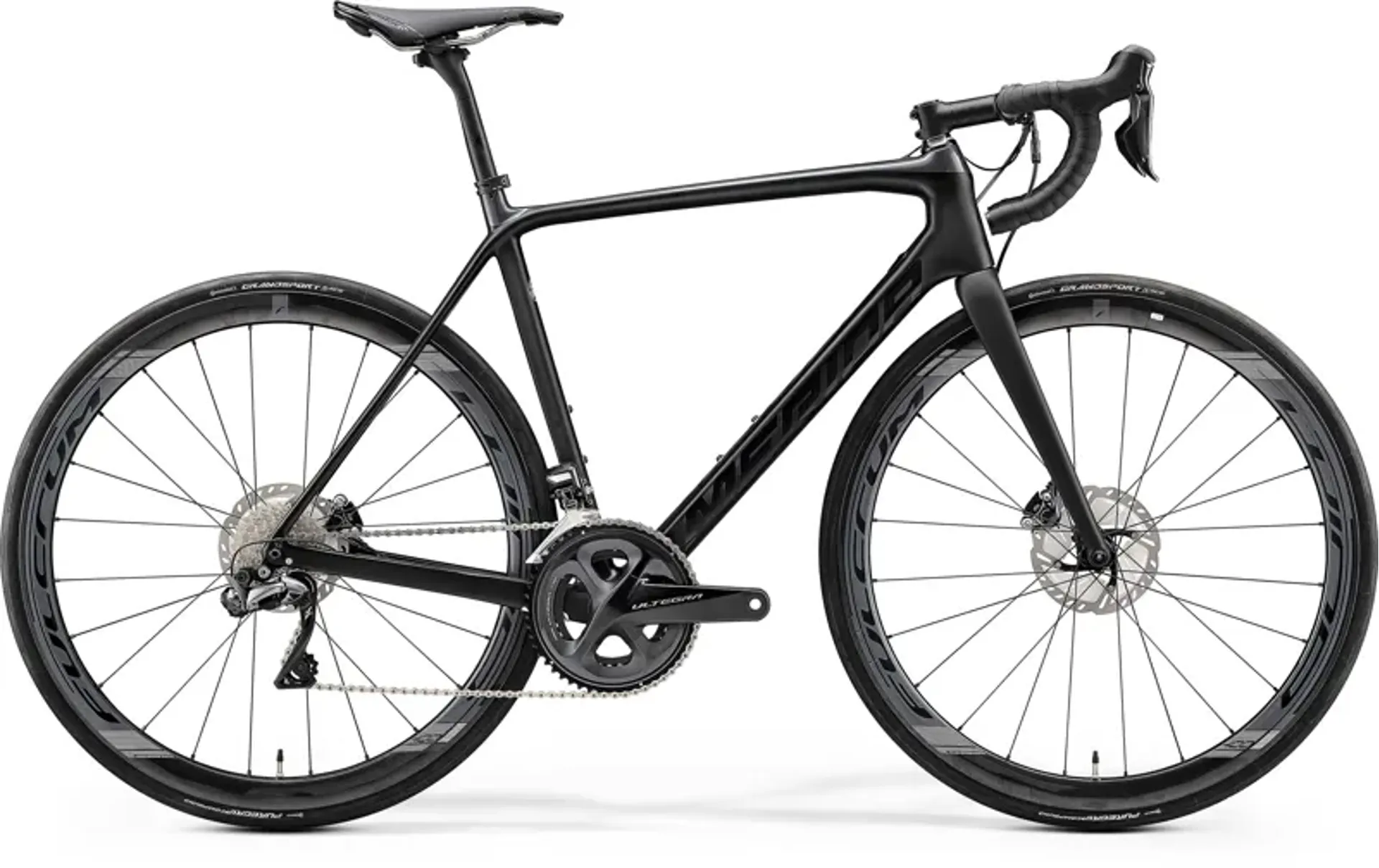

2020 Merida Scultura Disc 8000-E Road Bike in Black

Season:2020

Brand:Merida

Code:KCB724

Merida's wind tunnel learnings from the REACTO design project have been used to create a smaller aerodynamically optimised ‘NACA Fastback’ tube profile. The more extreme truncation of the teardrop shaped tubes enables perfect airflow at the lowest possible weight.

Features:
  • Superlite CF4 Disc frame (860 g – M/L). Aggressive ProTour proven geometry with truncated ‘NACA Fastback’ profiled down tube and seat tube and slim 1 1/8" to 1 1/4" tapered head tube for aerodynamics. BB386 for exceptional power transfer. Narrow profiled seat stays reduce vibration and deliver comfort. Caliper version runs quick release hubs, Disc version features through axles and flat mount rear disc brake with disc cooler technology.
  • All performance DISC road bikes feature 12 mm bolt through axles for greater wheel stiffness and precise disc alignment when replacing wheels. CF4 models use the R.A.T system, super fast to open and close.
  • All models feature a full carbon fork with a tapered steerer to give precise, confidence inspiring handling. Aluminium and CF2 carbon models feature a ‘regular’ 1 1/8" to 1 1/2" taper. The high end CF4 frame has a slimmed down front profile and uses a 1 1/8" to 1 1/4" taper.
  • A forged aluminium part under the front and rear disc brake caliper draws heat away through CNC-milled cooling fins, giving 35% less heat build up and faster temperature reduction for a stable braking performance.
  • Merida's top end CF4 frame brings in 850 g (size M/L) in the caliper brake version whilst the CF4 Disc frameset tips the scales at 1000 g (size M/L). Incredible readings while offering a lifetime warranty on all our frames, even when raced.
  • The SCULTURA DISC and rim version can be fitted with 25 mm wide tyres, providing maximum traction and transferring the improved braking power to the road. The 25 mm tyres also offer improved comfort.
Technical Information
  • CHAINWHEEL
    Shimano Ultegra 52-36 teeth 165 mm-XXS, 170 mm-XS/S, 172.5 mm-SM/ML, 175 mm-L/XL
  • FRAME SIZE
    S, S/M, M/L, L, XL
  • FRAME
    SCULTURA DISC CF4 material: carbon 700C wheelsize 100x12/ 142x12mm axle standard BB386-PF30 bottom bracket standard
  • FORK
    SCULTURA CF4 disc
  • WHEELSET
    Wind 400 DB 2WF100x12mm width front hub 142x12mm width rear hub 19mm inner width 40mm height Centerlock
  • HUBS
    MERIDA EXPERT SL
  • TYRES
    Continental Grand Sport Race
  • SHIFTERS
    Shimano Ultegra disc Di2
  • FRONT DERAILLEUR
    Shimano Ultegra Di2
  • REAR DERAILLEUR
    Shimano Ultegra Di2GS
  • CRANK SIZE
    165 mm-XXS, 170 mm-XS/S, 172.5 mm-SM/ML, 175 mm-L/XL
  • CASSETTE
    Shimano CS-R800011-30 teeth 11 speed
  • BRAKE LEVER
    Shimano Ultegra
  • BRAKES
    Shimano Ultegra
  • ROTORS
    Shimano RT800
  • BOTTOM BRACKET
    FSA 386-BB30 PF6000 [SMN FC]
  • CHAIN
    KMC X11EL
  • HEADSET
    FSA NO.44/CF neck
  • HANDLEBAR
    MERIDA TEAM SLmaterial: carbon
  • STEM LENGTH
    MERIDA EXPERT CC material: aluminium 31.8mm diameter -5° stem angle 80 mm-XXS/XS, 90 mm-S, 100 mm-SM/ML, 110 mm-L/XL
  • STEM SIZE
    80 mm-XXS/XS, 90 mm-S, 100 mm-SM/ML, 110 mm-L/XL
  • SADDLE
    Prologo Scratch 2
  • SEAT POST
    MERIDA TEAM SLmaterial: carbon 27.2mm diameter 15mm setback S-Flex
  • SEAT CLAMP
    MERIDA TEAM SL
  • GRIP
    MERIDA ROAD EXPERT
  • BOTTLE CAGE
    B-147B
  • WEIGHT
    7.33 kgweighed at frame size M-L without pedals
