Big travel, big battery, big hits. Merida's 180 mm travel rig is designed to make short work of whatever the mountain can throw at it, with high-performance RockShox suspension, a huge 800 Wh battery and Bosch CX power.
Big travel, big battery, big hits. Merida's 180 mm travel rig is designed to make short work of whatever the mountain can throw at it, with high-performance RockShox suspension, a huge 800 Wh battery and Bosch CX power.
Merida

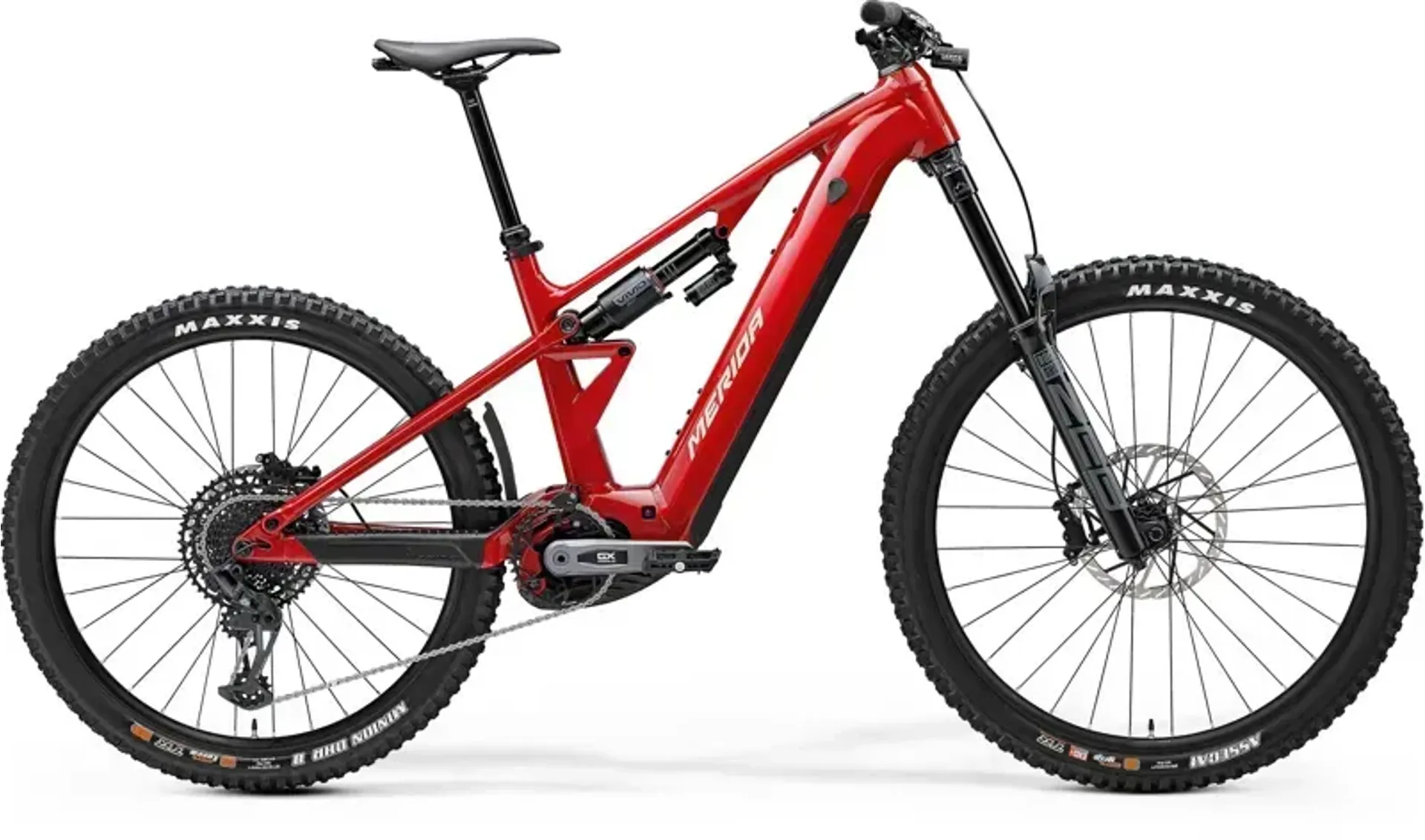

Merida eOne-Eighty 700 in Heritage Red

£6,500.00
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Merida eOne-Eighty 700 in Heritage Red

Season:2025

Brand:Merida

Code:P-Q850

The eONE-EIGHTY 700 offers a perfect pairing of performance and price, thanks to a spec that's functional without being flash. Merida's tough aluminium frame serves up 180 mm of big-mountain-ready travel in an agile mixed wheel size package, while the powerful Bosch CX drive unit with 800 Wh battery means you can rip bike park laps all day long. RockShox's Zeb Select 180 mm fork and Vivid Select shock will tame anything the trail throws at you, and SRAM's GX Eagle drivetrain offers no-fuss shifting.

Calling all heavy hitters, bike park senders and big mountain brawlers, this one’s for you. The new eONE-EIGHTY has landed, and it’s ready to ride the biggest lines and burliest tracks - and you can say goodbye to waiting in the uplift queue because it can rip and repeat all day long thanks to a big 800 Wh battery and Bosch CX power.

It’s their longest travel e-bike ever, with 180 mm of suspension at either end on a robust aluminium frame with a new suspension platform that builds on their award-winning FAST kinematic from the eONE-SIXTY and sends it to new heights. Add in coil shock compatibility, mixed-wheel size only setup, plus a whole host of other features and getting rowdy is where the eONE-EIGHTY starts, not finishes. Up or down, it’s ready to rock.

It’s also Merida's first e-MTB to use the Bosch Performance Line CX drive unit, which offers powerful assistance and silent performance with 85 Nm on tap. There’s a serious amount of range on offer too, thanks to the new 800 or 600 Wh battery - plus the option of a 250 Wh range extender. You can easily remove the battery for off-bike charging or replacement on a really big ride, plus they’ve also got a new cover that protects from dirt, impacts and moisture - and it holds itself in place with the magic of Fidlock magnets.It’s rated for Category 5 riding too, so you can get stuck into as many bike park laps or downhill tracks as you like without voiding the 5-year warranty.

Features:

  • Tough aluminium frame with 180 mm rear wheel travel and mixed wheel sizes as standard for fun and agile handling
  • RockShox Zeb Select fork with 180 mm travel, RockShox Vivid Select rear shock
  • SRAM GX Eagle 12-speed drivetrain, MERIDA TEAM TR II tubeless ready wheelset
  • SRAM DB8 Stealth 4-piston brakes with 220 / 200 mm rotors
  • User removable 800 Wh battery with optional 250 Wh range extender, powerful Bosch CX drive unit
  • Reach-based AGILOMETER sizing system with 30-230 mm adjustable dropper post
Technical Information
  • Frame
    eONE-EIGHTY LITE Material: Aluminium 180mm suspension travel 27.5" x 2.6" max. wheelsize 148x12mm axle standard
  • Frame Size
    XShort, Short, Mid, Long, XLong
  • Frame Color
    HERITAGE RED (BROWN)
  • Fork Model
    Rock Shox Zeb Select eMTB Air 180mm suspension travel Tapered 44mm fork offset 29x2.6" max wheelsize
  • Shock Model
    Rock Shox Vivid Select Platform
  • Brakes Model
    Sram DB8 Stealth 4 piston
  • Rotors Model
    Sram HS2 220mm, 200mm
  • Headset Type
    Acros ICR MERIDA EXTERNAL neck w/ Blocklock
  • Handlebar
    MERIDA EXPERT eTR 780mm width XS,S 20RHB M,L,XL 30RHB
  • Handlebar Stem
    MERIDA EXPERT eTR II Material: Aluminium 35mm diameter 0° stem angle Supernova mount 40 mm all sizes
  • Grip Model
    MERIDA EXPERT EC
  • Rear Derailleur Model
    Sram GX Eagle
  • Shifters Model
    Limotech RM10 (For SRAM MMX) / Sram GX Eagle Single Click
  • Seat Post
    MERIDA TEAM TR II 34.9mm diameter 0mm setback SHORT, MID, LONG and XLONG 30-230mm travel seatpost XSHORT 30-200mm travel seatpost
  • Seat Clamp
    MERIDA EXPERT
  • Saddle
    MERIDA COMP SL 28% recycled material V-mount
  • Pedal Model
    VP VP-532
  • Chain Model
    Sram NX Eagle
  • Chainwheel
    Sram Eagle Transmission E-MTB chainring 36 teeth
  • Crank Model
    Sram GX Eagle E-MTB Crank, 165mm
  • Crank Length
    165mm
  • Freewheel Model
    Sram CS PG1230 EAGLE 11-50T
  • Hubs
    Shimano TC500 15x100mm width front hub 32 spoke holes Centerlock 12x148mm width rear hub 32 spoke holes Centerlock
  • Rim
    MERIDA EXPERT TR II 110x15mm width front hub 148x12mm width rear hub 28mm inner width Material: Aluminium Tubeless ready (Tubeless tape and valves not included) Front 29" Rear 27.5"
  • Front Tyre
    Maxxis Assegai 29x2.5 " fold TR EXO+ 3C MaxxGrip
  • Rear Tyre
    Maxxis Minion DHR II 27.5x2.4 " Fold 3C DD TR MaxxTerra
  • Axles Model
    MERIDA EXPERT TR Including removeable lever, 6/4mm allen key
  • Spokes
    Black stainless
  • Front Light
    Lezyne Hecto StVZO E350+ Reverse Reverse MERIDA Custom Mount
  • Rear Light
    USB REAR Light CG-214RG
  • Drive Unit Model
    Bosch Performance Line CX
  • Battery Model
    Bosch PowerTube 800 Wh Removeable
  • Battery Lock Model
    Abus Key
  • Display Model
    Bosch Purion 400
  • Approx. Weight
    27 kg Weighed at frame size M Weight may vary depending on bike size, finish or possible specification changes due to supply chain issues
  • Max Weight Capacity
    140 kg
