JAM2 7.8 FEATURES

STRONG AND DYNAMIC SHIMANO EP8 E-DRIVE WITH INTEGRATED, REMOVABLE 720 WH BATTERY150 MM TRAVEL WITH NEW F.O.L.D. KINEMATICS OPTIMIZED FOR MORE PROGRESSION: ROCKSHOX 35 GOLD SUSPENSION FORK AND DELUXE SELECT REAR SHOCK

JAM2 7.8 FEATURES

STRONG AND DYNAMIC SHIMANO EP8 E-DRIVE WITH INTEGRATED, REMOVABLE 720 WH BATTERY150 MM TRAVEL WITH NEW F.O.L.D. KINEMATICS OPTIMIZED FOR MORE PROGRESSION: ROCKSHOX 35 GOLD SUSPENSION FORK AND DELUXE SELECT REAR SHOCK
Focus

Focus Jam 2 7.8 Med 42 Green 720WH

£4,799.00
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

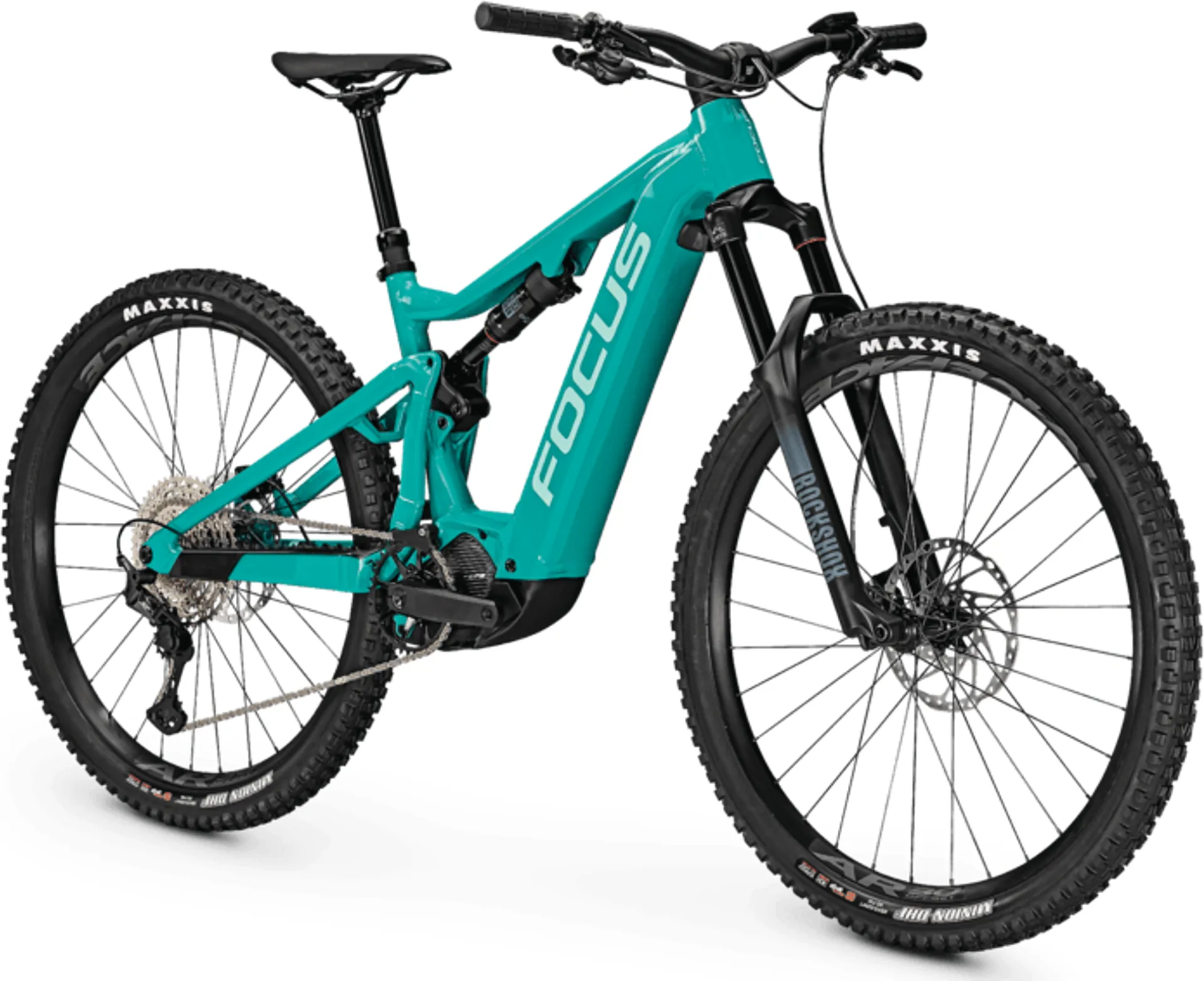

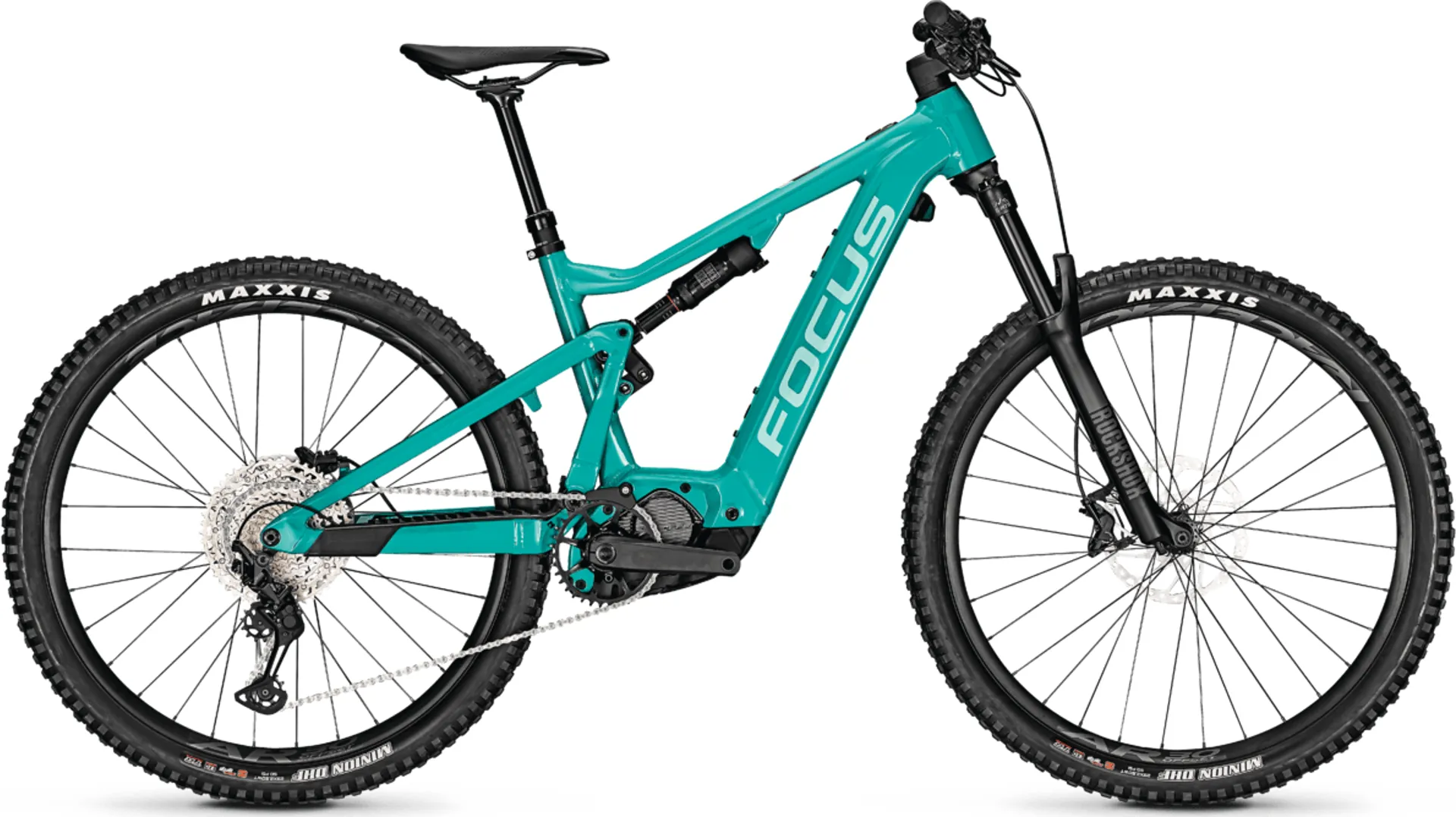

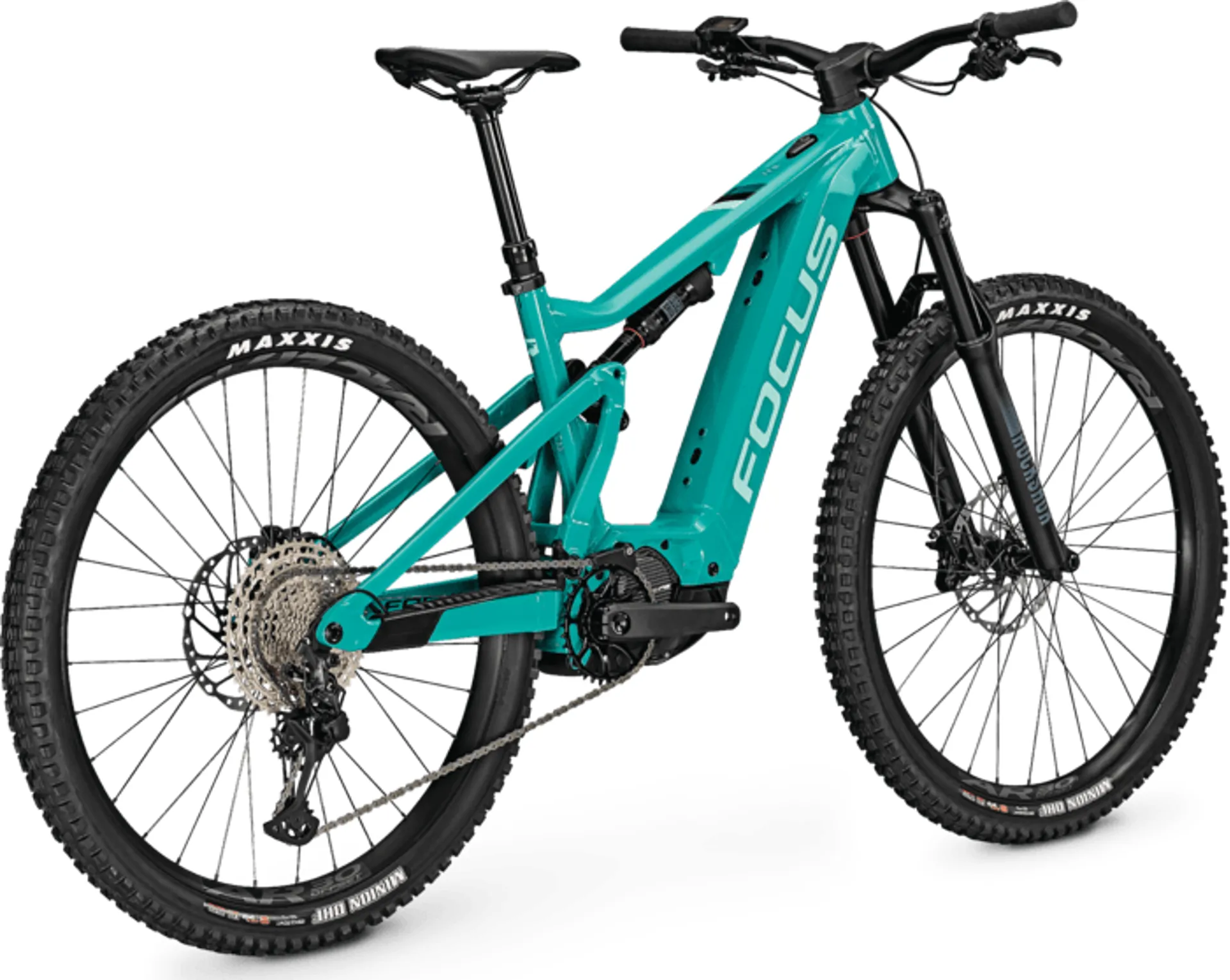

Focus Jam 2 7.8 Med 42 Green 720WH

Brand:Focus

Code:D644613026

  • MORE DYNAMIC AND RANGE, BUT LESS WEIGHT

    Shimano's EP8 e-drive offers dynamic power and a lightweight system that supports the JAM² 7.8's agile geometry. Furthermore, our specially developed, integrated, yet removable battery supports your super long rides with 720 Wh. Additionally, a USB C port on the top tube gives you the opportunity to charge your devices.

  • OPTIMIZED KINEMATICS FOR STRONG PROGRESSION

    With the upgrade of our well-known F.O.L.D. kinematics, your JAM² 7.8 is ready to shred even more. We kept the well-liked sensitivity of the F.O.L.D. but changed the positioning of our kinematics within the frame for strong bottom-out resistance. The characteristics are completely progressive which results in a chassis that offers a lot of stability in rough terrain. Especially e-mountain bikes with their additional weight of motor and battery benefit from more progression. This allows you to handle any trail while the chassis still provides comfort for long laps. Furthermore, the lower standover of the JAM² 7.8 gives you more space to play on the trail.

  • MORE FUN ON THE TRAILS

    Riding performance first. The JAM² 7.8 will make your ride better – every time. An agile, nimble geometry in a slim, compact design will push you over all kind of trails whether technical or flow. The FLIP CHIP at your JAM² 7.8's linkage can be used to adjust your geometry to an even more aggressive riding style. The small adjustment of the head angle from 65,5° to 65° changes your whole set-up goal making it even more downhill-oriented. Additionally, the specially developed C.I.S. (Cockpit Integration Solution) design ensures a clean cockpit and constantly seamless shifting and braking. All cables run from the handlebar into the stem and through the headset into the frame. On top, all your essentials fit in the tool bag between top and down tube.

Technical Information

SPECIFICATION

FRAME MATERIAL
Aluminium
FRAME
7005 hydroformed aluminium, 3D forging, 150 mm F.O.L.D. GEN2 kinematics, 148x12 mm thru axle, internal cable routing, USB-C port, post mount 203 mm
FORK
Rock Shox 35 Gold RL 29 Boost * / DVO Diamond E3*, 110x15 mm, 44 mm rake
TRAVEL OF SUSPENSION FORK
150 mm
SHOCK
Rock Shox Deluxe Select, 210/55 mm, hardware: 25.0 x 8.0 mm, no Bushing
MOTOR
Shimano Steps EP8, 36V / 250 W / 85 Nm
BATTERY WATT-HOURS
720 Wh
BATTERY AMPERE HOURS
20,8 Ah
DISPLAY
Shimano SC-E5003
SHIFTER
Shimano SLX M7100, 12-speed
REAR DERAILLEUR
Shimano SLX M7100, 12-speed
SPROCKET
Shimano Deore CS-M6100, 12-speed
CHAIN
Shimano CN-LG50
CRANKSET
Samox EC40 ISIS
TRANSMISSION OF DRIVE
front: 36, rear: 10-51
BOTTOM BRACKET
Integrated in Drive Unit
HANDLEBAR
Aluminium, 800 mm, rise: 30 mm, backsweep: 9°
STEM
FOCUS C.I.S. integrated, 50 mm, 0°, 35 mm, aluminium
HEADSET
ACROS ZS56/ZS66 (ICR), FOCUS C.I.S. Integrated, 1.5/1.8" angle headset
SADDLE
FOCUS Race SL
SEATPOST
Post Moderne dropper post PM-214, 34.9 mm
BRAKE CALIPER
Shimano MT520, hydraulic disc brake
BRAKE LEVER
Shimano MT520
BRAKE
Disc
RIMS
RaceFace AR30 Offset
REAR HUB
Shimano MT410, 12x148 mm
FRONT HUB
Shimano MT410, 15x110 mm
TIRES
Maxxis Minion DHF, EXO, 63-622
GEARS
12
BIKE WEIGHT INCL. BATTERY IN KG.
25
SIZE
39,45,42,47
Sizing Information

GEOMETRY

SMLXL
SIZE39424547
SIZE (MM)390420450450
HANDLEBAR WIDTH800800800800
STEM LENGTH (MM)50505050
CRANKARM LENGTH165165165165
SEAT POST LENGTH (MM)390480480480
ASEAT TUBE LENGTH (MM)390420450450
BEFFECTIVE TOP TUBE (MM)572602637671
CHEAD TUBE ANGLE (°)65656565
DEFFECTIVE SEAT TUBE ANGLE (°)76767676
ECHAINSTAY LENGTH (MM)448448448448
FBOTTOM BRACKET DROP (MM)25252525
GHEAD TUBE LENGTH (MM)105110130150
HFORK CONSTRUCTION HEIGHT (MM)561561561561
IPRE-RAKED FORK (MM)44444444
JWHEELBASE LENGTH (MM)1192122412621301
KSTACK (MM)612617635653
LREACH (MM)420450480510
