Fuel your desire to explore and push yourself further and further.Riding on paved and unpaved roads with drops of less than 15 cm.
Fuel your desire to explore and push yourself further and further.Riding on paved and unpaved roads with drops of less than 15 cm.
Bianchi

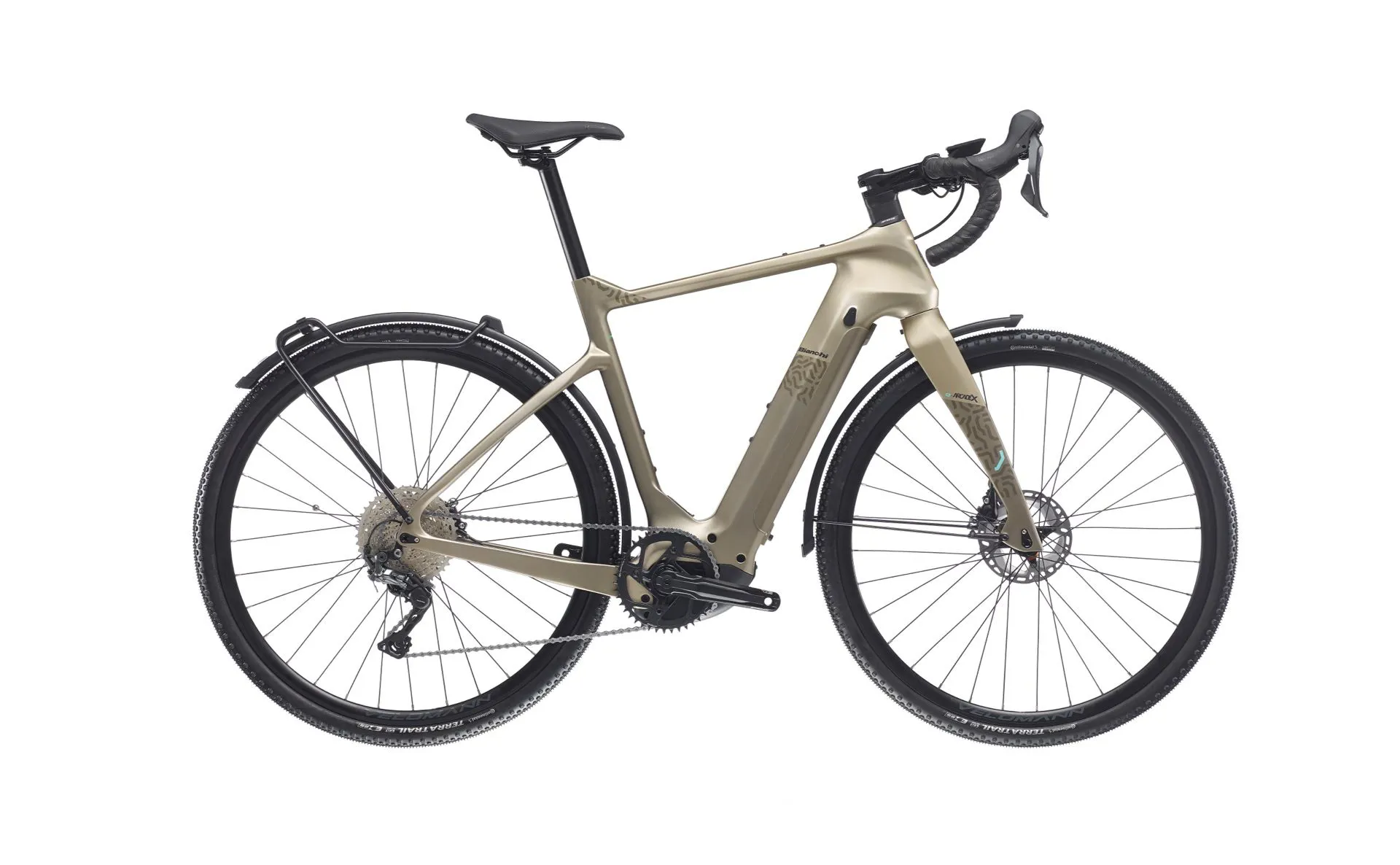

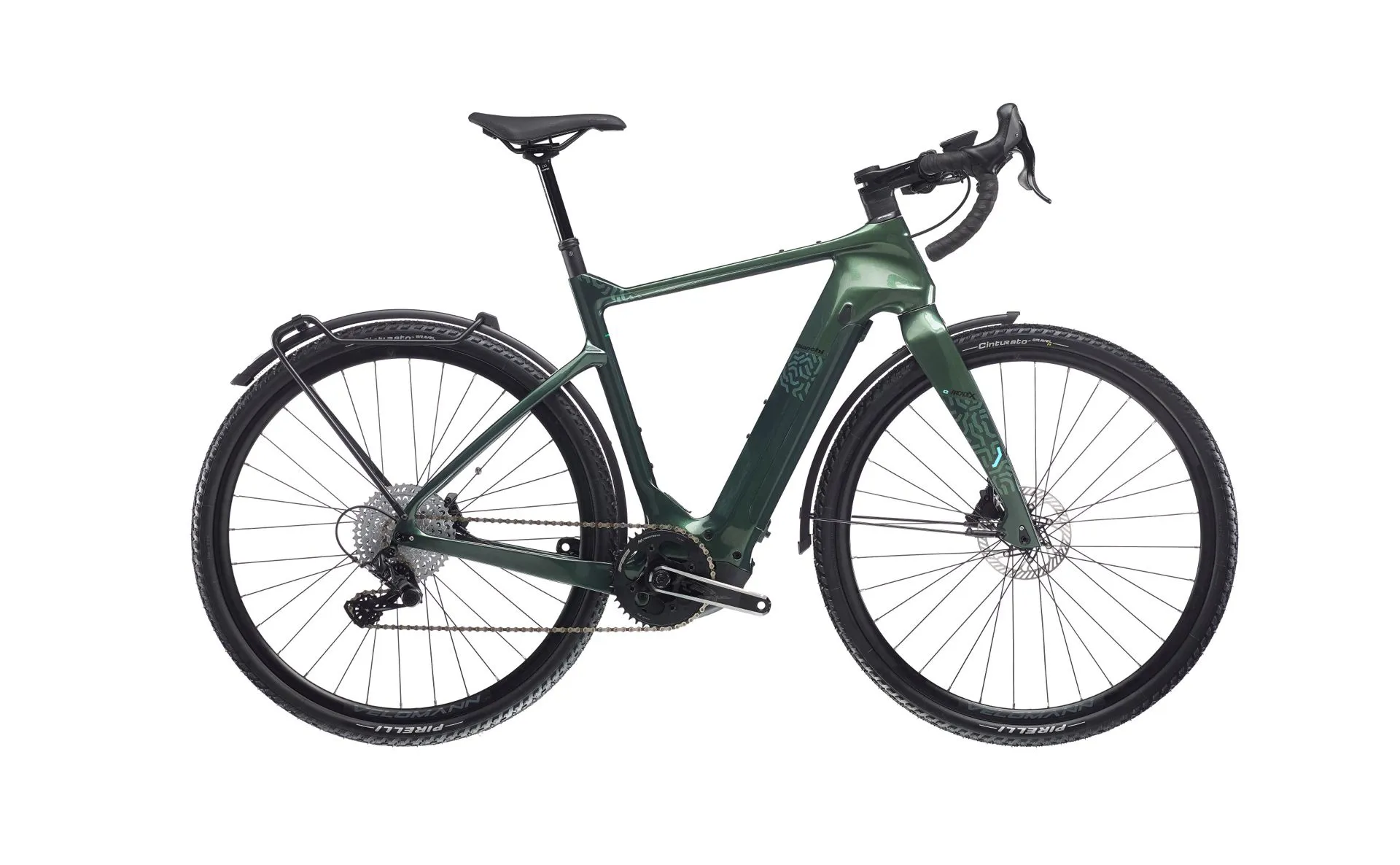

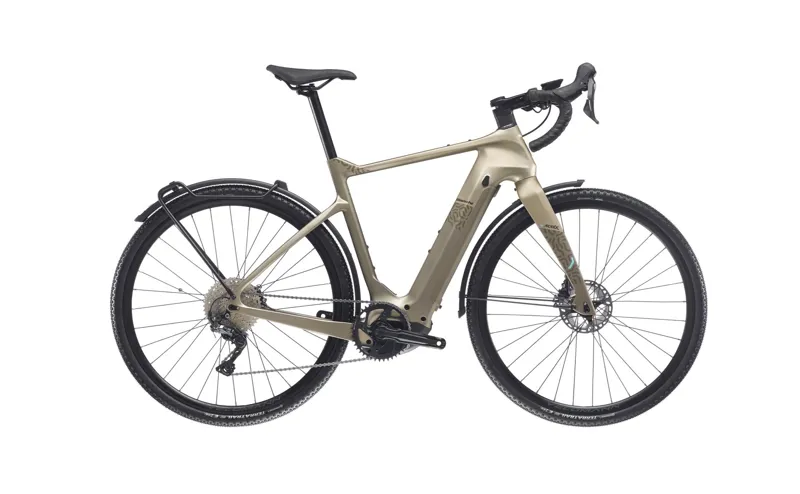

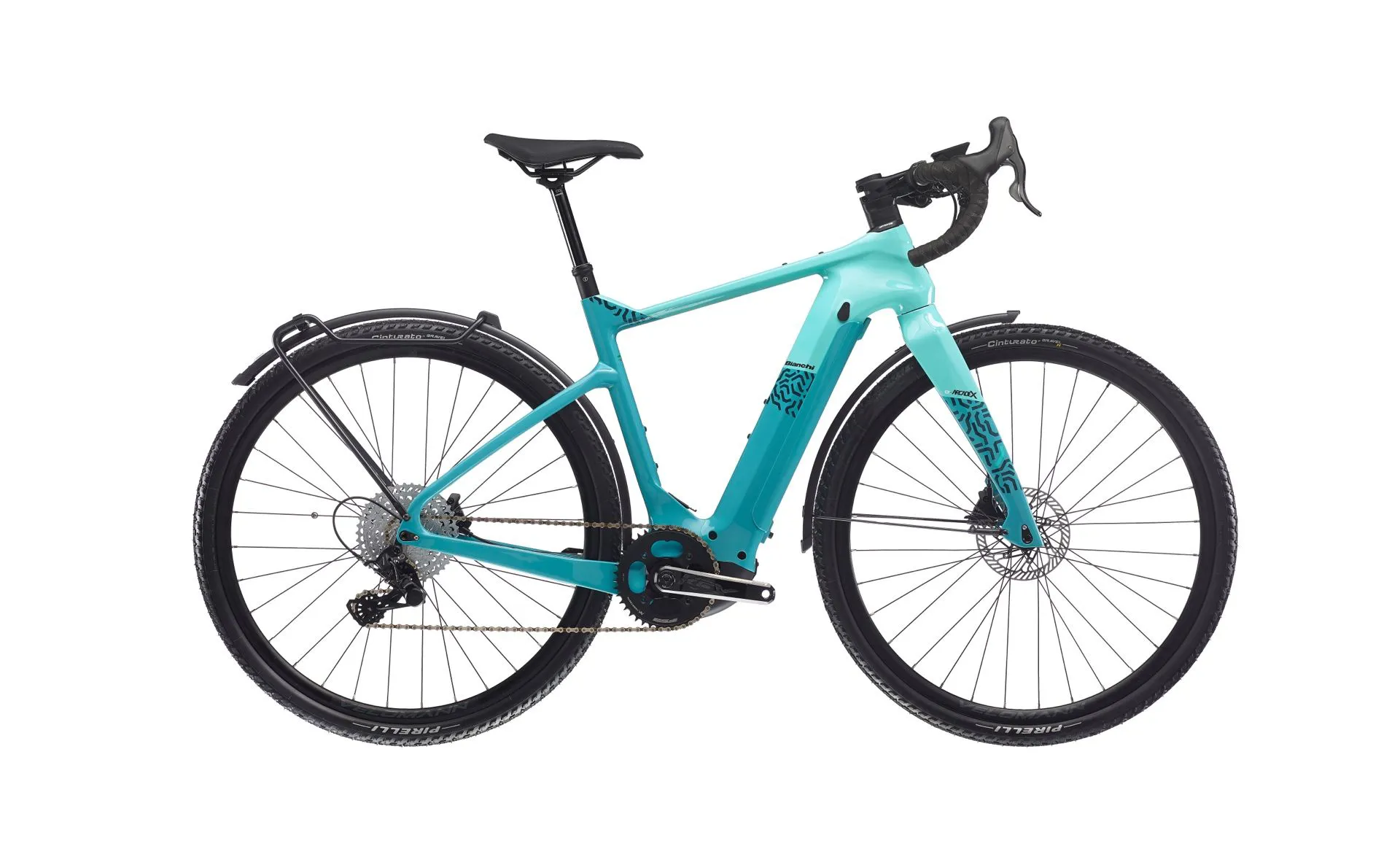

Bianchi E-ARCADEX GRX600 DISC TOURER

£3,949.00
Size Guide
Earn
in Customer Rewards when you buy this item today
Sign Up
Sign In
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Bianchi E-ARCADEX GRX600 DISC TOURER

Season:2025

Brand:Bianchi

Code:YSB3HI

Technical Information

  • Motor Unit

    1. Motor

      Bosch Performance Line CX motor unit

    2. Battery

      Bosch Powertube 500Wh integrated battery

  • Frameset

    1. Fork

      Full Carbon 1.5" flat mount, disc brake, thru axle 12x100mm

    2. Headset

      FSA SMR HS with 1-1/8” custom top cone Bianchi, H2475 Internal Headset, Integrated Alloy custom top cup 1.1/8"", 1.5"", 36°/45° ACB (MR170 45/45 lower - MR127 36/45 upper, compressor ring 1.1/8"" w/o Compression

  • Drivetrain

    1. Shifters

      Shimano GRX 600 11sp Hydraulic disc brake

    2. Rear Derailleur

      Shimano GRX, 11-SPEED, TOP NORMAL, SHADOW PLUS DESIGN, DIRECT ATTACHMENT

    3. Crankset

      FSA E-Bike Forged Crankset - ISIS / 165mm - 170mm - 175mm / w/o crank bolt

    4. Bottom Bracket

      Included in the Drive unit

    5. Chain

      KMC e11 EPT Anti-Rust - 1/2" x 11/128"

  • Brakes

    1. Brakes

      Shimano BR-RX400 Hydraulic disc brake included in the shifter

    2. BrakeLevers

      included

    3. Rotor

      Shimano, RT-MT800, S 160MM, W/LOCK RING

  • Wheels

    1. RearHub

      Formula road disc , center lock, J-bend, thru axle 12xx142mm, w/o QR 4SB bearing for Shimano 10/11speed

    2. FrontHub

      Formula road disc , alloy 32h, center lock, J-bend, thru axle 12x100mm, w/o QR

    3. Tire

      Continental Terra Trail ShieldWall black/black foldable skin SL OE

  • Cockpit

    1. Stem

      Velomann, Alloy 6061 , 1 1/4", raise 0°, Oversize, plastic adaptor for hose cover 1 1/4", Ext: 80mm-XS -S, 100mm-M, 120mm-L/XL

    2. Handlebar

      Velomann Aluminum 6061, reach 70mm, flare angle 16°, drop cc 120, Size: 400mm-XS/S, 420mm-M/L, 440mm-XL

    3. Grips

      La Spirale Ribbon cork + new plug carbon look with Bianchi logo color: Black

  • Saddle

    1. Seatpost

      Velomann Alloy shaft AL6061, alloy head, 15mm offset, 31,6mm, Length: 300mm/XS - SM ; L350mm/MD - LG -XL

    2. Saddle

      Velomann, rail steel black, open, cover PU, lenght/wide 250x148mm color: black

  • Accessories

    1. Mudguards

      SKS A46 profile, integrated tail light XELTEC

    2. RearCarrier

      SKS Infinity GT3

    3. FrontLight

      Supernova - 235 lumen

    4. RearLight

      Integrated in the mudguard

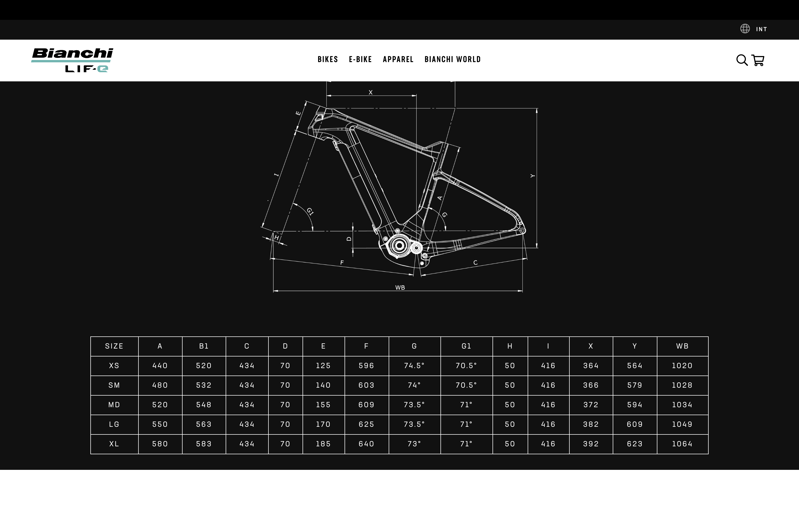

Sizing Information
